- Electric Lifting Columns EL Series
Electric Lifting Columns EL Series
The robot controller MRC01 and integrated robot controller & drivers MRCU Series can control up to two accessories equipped with the AZ Series in addition to the robot.
For example, when using a combination of one Small Robots OVR, one EH Series electric gripper, and one electric lifting column can be controlled with a single robot controller. Additionally, SCARA robots can be controlled as robots including lift axes, so a single robot controller can control one SCARA robot + one electric lifting column + up to two accessories equipped with the AZ Series.
Features
Easy to Combine With Small Robots OVR to Increase Vertical Reach

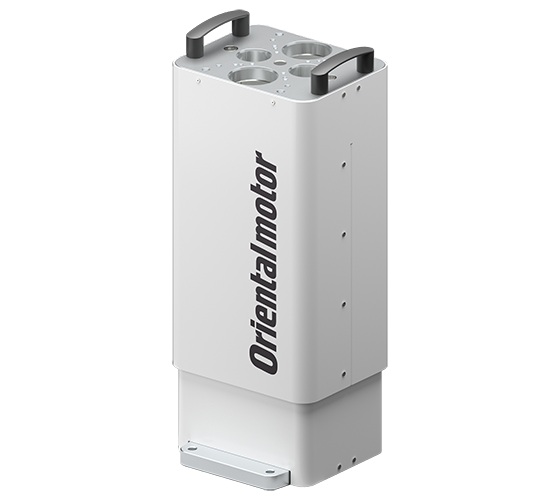

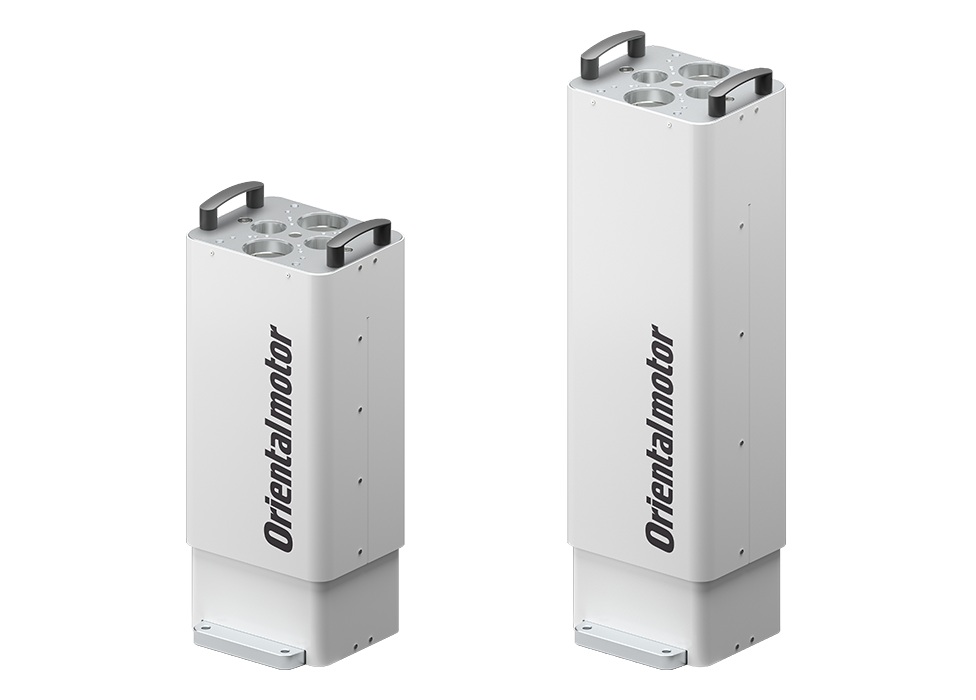

Electric lifting columns EL Series is a product that can be combined with a robot to expand the vertical operation range. High rigidity and high accuracy stroke 50 to 300 mm The lineup includes high rigidity and high precision models with strokes ranging from 50-300 mm. Contributes to reducing equipment design, assembly, and start-up time.
Reduced Time for Equipment Design, Assembly, and Start-Up
Robots and loads can be attached directly to the product body. Eliminates the need for the customer to design an external guide and arrange parts, thus contributing to a reduction in equipment startup time.
Here are some examples of using the electric lifting columns EL Series.
Electric Lifting Columns EL Series

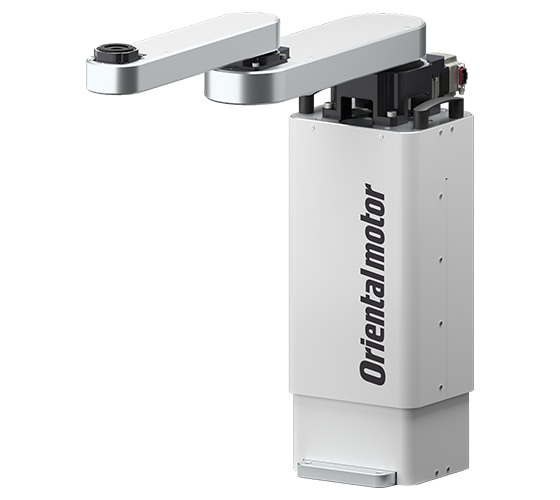

Small Robots OVR 3-axis SCARA Robot + Electric Lifting Columns EL Series + Electric Gripper EH Series

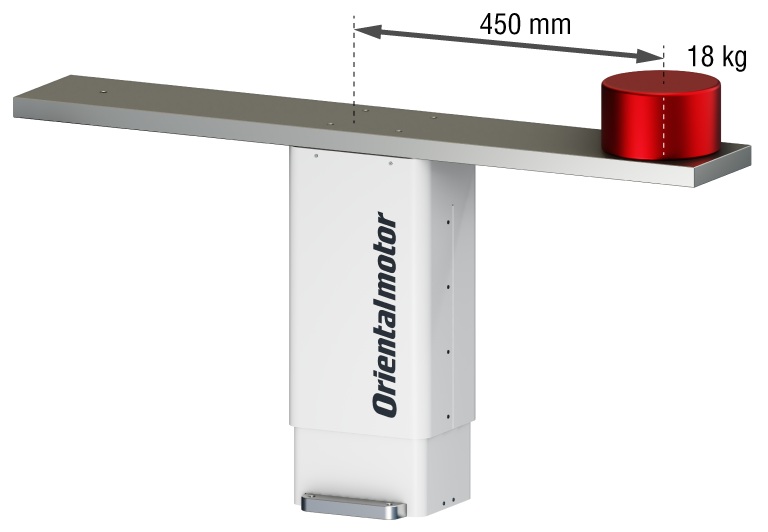

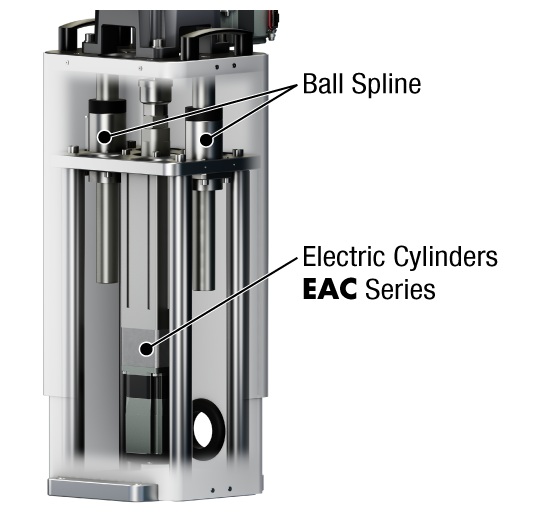

High Rigidity, High Accuracy, and High Permissible Moment Load Are Made Possible With Ball Splines
High permissible moment load is made possible with highly rigid ball splines. The permissible moment of 80 N·m makes it ideal for use in combination with SCARA robots.
Capable of Driving Heavy Loads at High Speeds
Example Operation

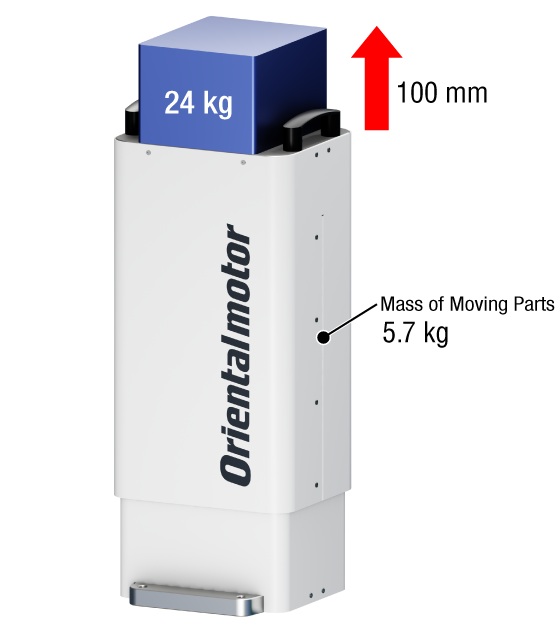

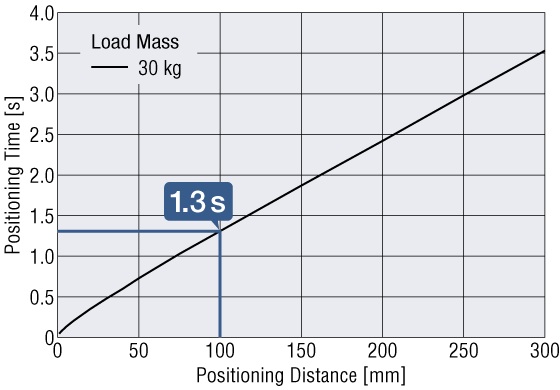

- Load Mass (Total): 29.7 kg (5.7 kg moving parts + 24 kg load)
- Positioning Distance: 100 mm
Product Used
- Product Name: EL610AZMK
- Lead: 6 mm
- Power Supply Input: 24 VDC
 |
|
|
